PALLETIZING ROBOT, OTHERS
- Company :Industrial Automation
- Category :FANUC

|
FANUC Robot M-410iC | /110 | /185 | /315 | /500 |
|---|---|---|---|---|---|
| Controlled axes | 4 | ||||
| Max. payload at wrist | 110kg | 185kg | 315kg | 500kg | |
| Motion range (X, Y) | 2403mm, 2238mm | 3143mm, 2958mm | |||
| Repeatability | ±0.05mm | ||||
| Mass | 1030kg | Pedestal type 1600kg (Note: Controller mass 120kg is included.) No pedestal 1330kg (Note: Controller mass 120kg is not included.) |
Pedestal type 2410kg (Note: Controller mass 120kg is included.) No pedestal 1910kg (Note: Controller mass 120kg is not included.) |
||
| Installation | Floor | ||||
| Matching controller / Input power source capacity | R-30iB Plus (A-, B-cabinet) / 15kVA | R-30iB/R-30iB Plus (A-, B-cabinet) / 15kVA | |||
| Application | Handling | ||||
M-410
|

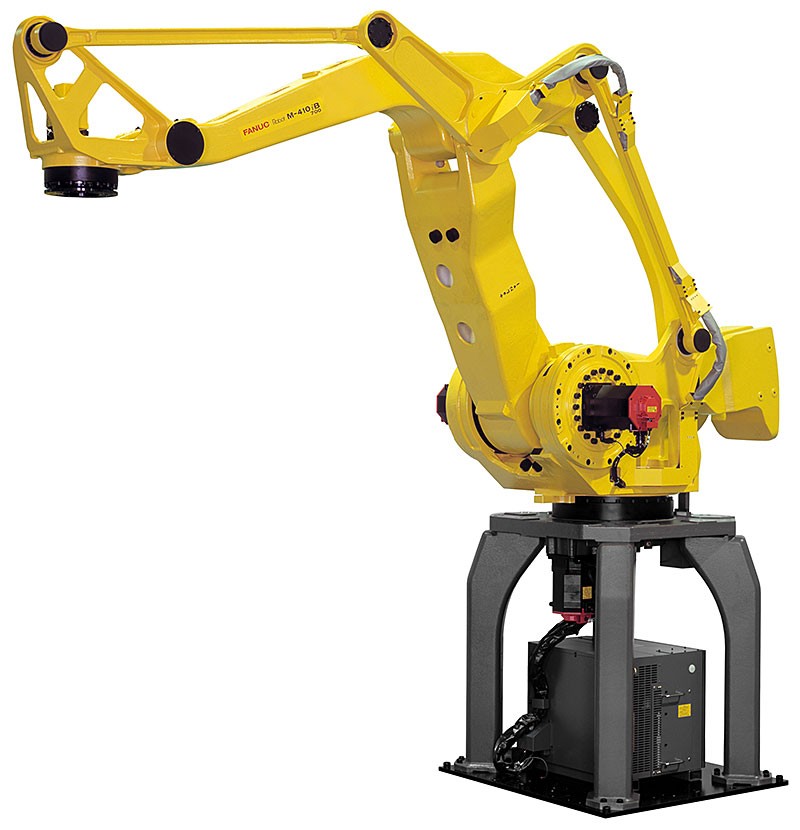

FANUC Robot M-410iB | /140H | /700 |
|---|---|---|---|
| Controlled axes | 5 | 4 | |
| Max. payload at wrist | 140kg | 700kg | |
| Motion range (X, Y) | 2850mm, 3546mm | 3143mm, 2958mm | |
| Repeatability | ±0.05mm | ||
| Mass | 1200kg | 2700kg (Note: Controller mass 120kg is included.) |
|
| Installation | Floor | ||
| Matching controller / Input power capacity | R-30iB/R-30iB Plus (A-, B-cabinet) / 15kVA | ||
| Application | Handling | ||
|

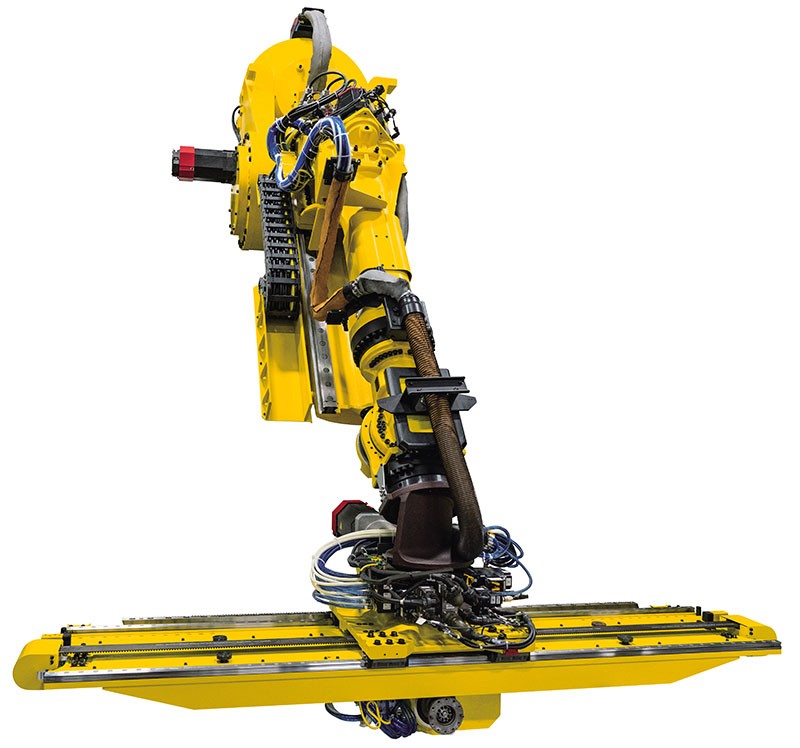

FANUC Robot TR-510iA | /500S | |
|---|---|---|---|
| Linear Press Tool (LPT) | Standard | Short | |
| Controlled axes | 6-axes robot + 2-axes LPT | ||
| Max.payload of Linear Press Tool | 130kg | ||
| Transferring distance (typical value) | 5500mm | 3500mm | |
| Mass (with LPT) | 4350kg | 4310kg | |
| Installation | Rack | ||
| Matching controller/Input power source capacity | R-30iB (A-cabinet) / 50kVA | ||
| Application | Press tending | ||
