FANUC ROBOT CRX SERIES

Buy Now

Brochure (English \| Chinese)	*FANUC Robot CRX series*	*CRX-5iA* *New!*	*CRX-10iA*	*CRX-10iA/L*	*CRX-20iA/L* *New!*	*CRX-25iA* *New!*
	Controlled axes	6
	Max. payload at wrist	5kg	10kg		20kg	25kg
	Motion range (X, Y)	994mm, 1988mm (To end of flange) (J4=+90deg.)	1249mm, 2498mm (To end of flange) (J4=+90deg.)	1418mm, 2836mm (To end of flange) (J4=+90deg.)		1889mm, 3778mm (To end of flange) (J4=+90deg.)
	Repeatability	±0.03mm	±0.04mm			±0.05mm
	Mass	25kg	40kg		41kg	135kg
	Installation	Floor, Upside-down, Angle
	Matching controller / Input power source capacity	R-30iB Mini Plus / 1.5kVA
	Application	Handling, Assembling, Arc welding

—————————————————————————————————————————————————————————-

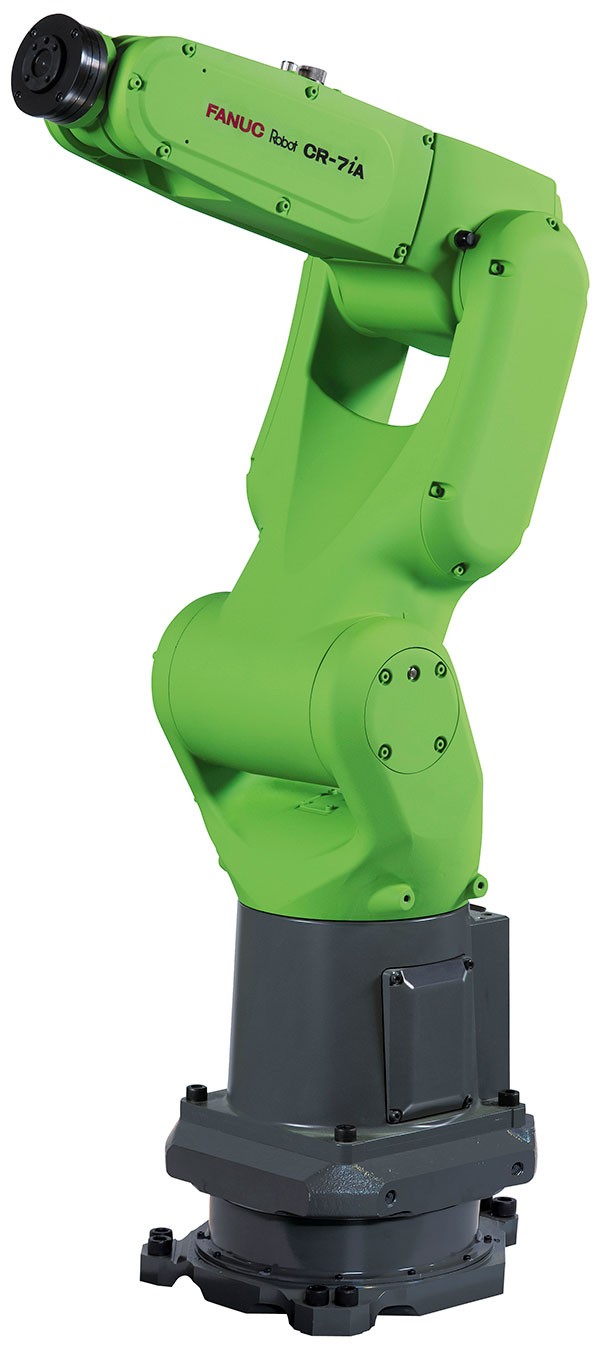

Brochure (English \| Chinese)	*FANUC Robot CR-4iA, CR-7iA, 14iA*	*4iA*	*7iA*	*7iA/L*	*14iA/L*
	Controlled axes	6
	Max. payload at wrist	4kg	7kg		14kg
	Motion range (X, Y)	550mm, 818mm	717mm, 1061mm	911mm, 1359mm	911mm (load capacity < 12kg), 1359mm 820mm (load capacity ≥ 12kg), 1359mm
	Repeatability	±0.01mm
	Mass	48kg	53kg	55kg
	Installation	Floor, Upside-down, Angle
	Matching controller / Input power source capacity	R-30iB Mate/R-30iB Mate Plus (standard, open air) / 1.2kVA			R-30iB Mate Plus (standard) / 1.2kVA
	Application	Handling, Assembling

—————————————————————————————————————————————————————————-

Brochure (English \| Chinese)	*FANUC Robot CR-15iA*
	Controlled axes	6
	Max. payload at wrist	15kg
	Motion range (X, Y)	1441mm, 2413mm
	Repeatability	±0.02mm
	Mass	255kg
	Installation	Floor, Upside-down, Angle
	Matching controller / Input power source capacity	R-30iB Plus (A-cabinet), R-30iB Mate Plus (standard) / 2kVA
	Application	Handling, Assembling

—————————————————————————————————————————————————————————-

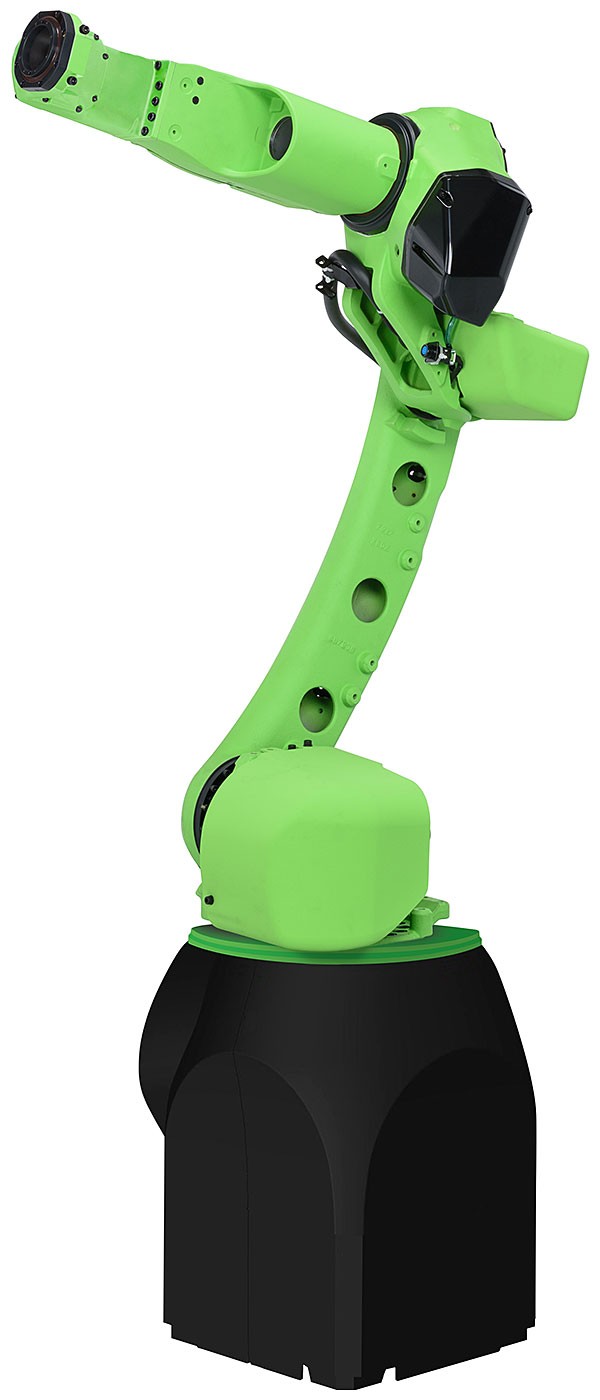

Brochure (English \| Chinese)	*FANUC Robot CR-35iB*
	Controlled axes	6
	Max. payload at wrist	35kg
	Motion range (X, Y)	1831mm, 3266mm
	Repeatability	±0.03mm
	Mass	375kg
	Installation	Floor
	Matching controller / Input power source capacity	R-30iB Plus（A-cabinet) / 3kVA
	Application	Handling, Assembling

—————————————————————————————————————————————————————————-

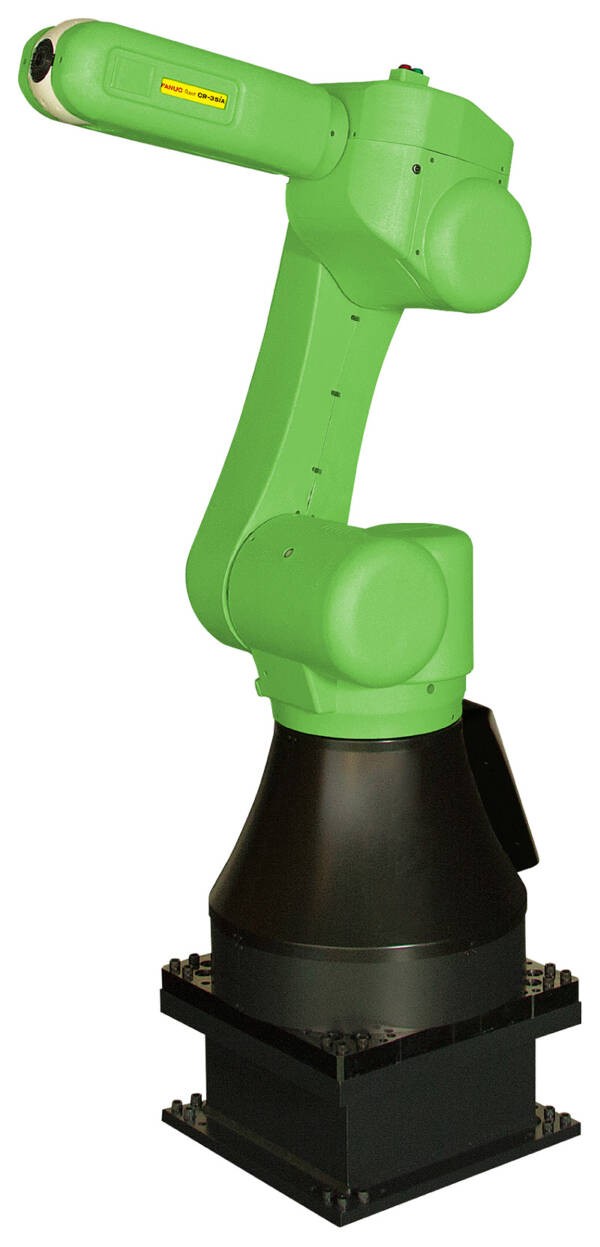

Brochure (English \| Chinese)	*FANUC Robot CR-35iA*
	Controlled axes	6
	Max. payload at wrist	35kg
	Motion range (X, Y)	1813mm, 2931mm
	Repeatability	±0.03mm
	Mass	990kg
	Installation	Floor
	Matching controller / Input power source capacity	R-30iB/R-30iB Plus (A-cabinet) / 3kVA
	Application	Handling, Assembling
