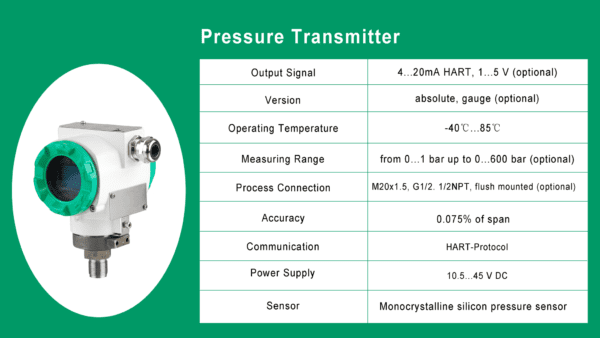

PRESSURE TRANSMITTER

MSP80 SERIES


MSP80 MSP80F
 Product No. 2181-6152  Product No. 2181-6252
easily configured from PC by HTPresE_V1.08 or



via standard HART® handheld device

easily configured from PC by HTPresE_V1.08 or



via standard HART® handheld device

Output signal: 2-wire 4mA…20mA or



3-wire 1V…5V + HART®

Output signal: 2-wire 4mA…20mA or



3-wire 1V…5V + HART®

Piezo-resistive pressure sensor or



single-crystal silicon sensor (optional)

 Ceramic Capacitive Pressure Sensors or



Piezo-resistive pressure sensor or

single-crystal silicon sensor (optional)

measuring range: -1…0 bar, up to 70 bar



(customizable as required)

measuring range: -1…0 bar, up to 70 bar



(customizable as required)

reference accuracy: up to 0.1% FS reference accuracy: up to 0.1% FS
communication via Muesen HART® Modems
or standard HART® handheld device
communication via Muesen HART® Modems
or standard HART® handheld device
process connection: M20X1.5, 14 or 12 NPT (male),G14 or G12 (male). (optinal) process connection: flush mounted



(customizable as required)

Manual & Certificates Manual & Certificates
Ordering Code Ordering Code
