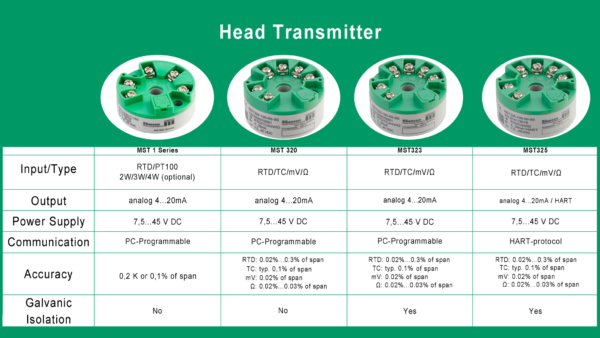

MST 1 SERIES

MST110 – 3W	MST110 – 4W	MST10RL
Produtct No.1110-1002	Produtct No.1112-1002	Produtct No.1114-1002

flatening design: total height of only 18mm	flatening design: a total height of only 18mm	a total height of 24,5 mm
easily configured from PC by HTTemp-2.06E	easily configured from PC by HTTemp-2.06E	easily configured from PC by HTTemp-2.06E
4mA…20mA Output signal	4mA…20mA Output signal	4mA…20mA Output signal
RTD Pt100 Input	RTD Pt100 Input	RTD Pt100 Input
2W/3W	2W/3W/4W	2W/3W
Accuracy: 0.1% FS Long-term stability 0.05% per year	Accuracy: 0.1% FS Long-term stability 0.05% per year	Accuracy: 0.1% FS Long-term stability 0.05% per year
communication via Muesen HART® Modems	communication via Muesen HART® Modems	communication via Muesen HART® Modems
installation in connection head Type B (DIN43729)	installation in connection head Type B (DIN43729)	installation in connection head Type B (DIN43729)
factory preset: PT100/3W/0…100℃ (can be configured as required)	factory preset: PT100/3W/0…100℃ (can be configured as required)	factory preset: PT100/3W/0…100℃ (can be configured as required)
Manual & Certificate	Manual & Certificate	Manual & Certificate

MST320	MST323	MST325
Produtct No. 1320-1002	Produtct No. 1323-1102	Produtct No. 1325-1202

a total height of 24,5 mm	a total height of 24,5 mm	a total height of 24,5 mm
easily configured from PC by HTTemp-2.06E	easily configured from PC by HTTemp-2.06E	easily configured from PC by HTTemp-2.06E or via standard HART® handheld device
4mA…20mA Output signal	4mA…20mA Output signal	4mA…20mA + HART®
Universal sensor input: RTD, Thermocouple, Ω，mV	Universal sensor input: RTD, Thermocouple, Ω，mV	Universal sensor input: RTD, Thermocouple, Ω，mV
2W/3W/4W	2W/3W/4W	2W/3W/4W
–	built-in 2000 VAC galvanic isolation	built-in 2000 VAC galvanic isolation
Accuracy: 0.02% FS, RTD 0.1%FS, Thermocouple Long-term stability 0.05% per year	Accuracy: 0.02% FS, RTD 0.1%FS, Thermocouple Long-term stability 0.05% per year	Accuracy: 0.02% FS, RTD 0.1%FS, Thermocouple Long-term stability 0.05% per year
communication via Muesen HART® Modems	communication via Muesen HART® Modems	communication via Muesen HART® Modems or standard HART® handheld device
installation in connection head Type B (DIN43729)	installation in connection head Type B (DIN43729)	installation in connection head Type B (DIN43729)
factory preset: PT100/3W/0…100℃ (can be configured as required)	factory preset: PT100/3W/0…100℃ (can be configured as required)	factory preset: PT100/3W/0…100℃ (can be configured as required)
Manual & Certificate	Manual & Certificate	Manual & Certificate
