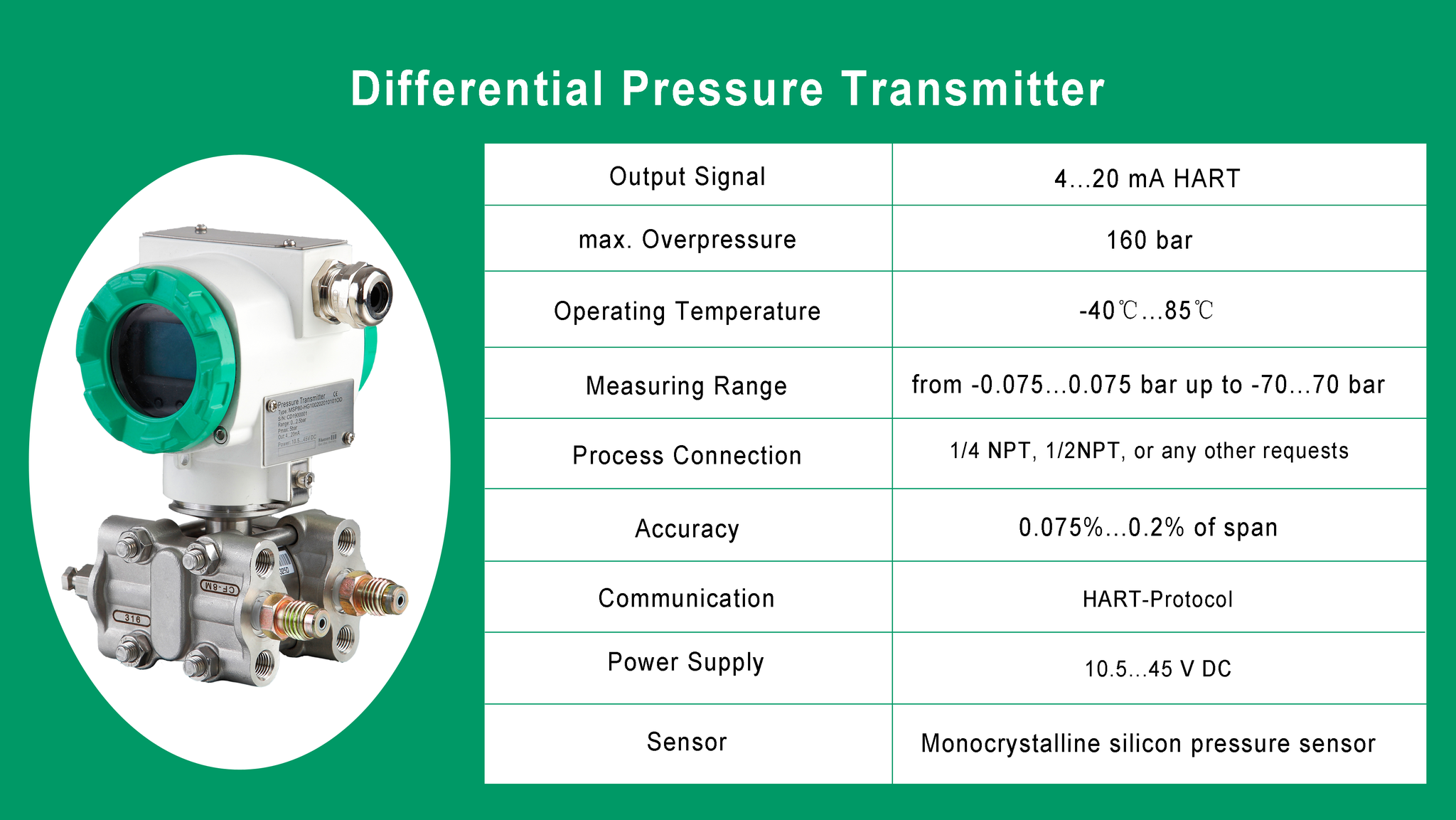

DIFFERENTIAL PRESSURE TRANSMITTER
- Company :Pressure Measurement Products
- Category :Muesen
 |
MSP80D |
| Product No. 2800-0000 | |
| easily configured from PC by HTPresE_V1.08 or
via standard HART® handheld device |
|
| Output signal: 2-wire 4mA…20mA or
3-wire 1V…5V + HART® |
|
| single-crystal silicon sensor | |
| measuring range: 0…1mbar, up to 0…100 bar
(customizable as required) |
|
| static pressure up to max. 400 bar | |
| overpressure up to max. 160 bar | |
| reference accuracy: up tp 0.05% FS | |
| communication via Muesen HART® Modems or standard HART® handheld device |
|
| process connection: M20X1.5, 1⁄4 or 1⁄2 NPT,
G1⁄4 or G1⁄2 (optinal) |
|
| process connection: | |
| Manual & Cetificates | |
| Ordering Code |
