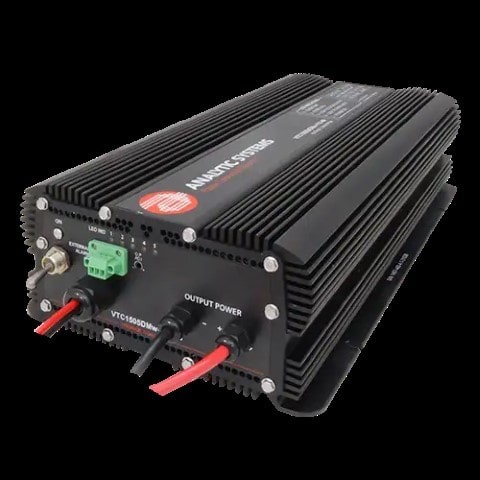

VTC1505-250-48 image

VTC1505-250-48

FEATURES

  • Ultra-Quiet
  • Power sensitive electronics without interference
  • Rugged & Reliable
  • Ensure years of safe and trouble free operation
  • Military-Grade extrusion ensures a high tolerance for shock and vibration
  • Can be left permanently connected
  • 3 Bank Load Splitter Available
  • Over-temperature shutdown
  • Short circuit protection
  • Visual indicators for output voltage & over-temperature
  • Output over-voltage crowbar
  • Inrush Current Limiting with solid state bypass
  • Thermostatically controlled fan
  • Three year parts and labour warranty

Three Year Warranty Seal

The VTC1505 Series of voltage converters provides 12, 24 or 48 Volts DC at 25 to 100 Amps of continuous power from a 110, 250, 300 or 360 Volt DC source.

Analytic Systems’ Voltage Converters use Switchmode technology with powerful IGBT switching transistors for reliability and efficiency with minimum size. Circuit innovations reduce output ripple to levels previously available only from bulky and inefficient linear power supplies. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit protection with automatic recovery. An Output Over voltage Crowbar circuit protects any powered devices from excessive voltage in the event of a failure of the unit.

The newly updated single-board VTC1503 is ultra-quiet and features the latest generation of current mode PWM control. Extra features include audible and visual indicators for over temperature and output on.
